Dredging and reclamation · Two 16-inch cutter suction dredgers

Shallow-draft dredgers for the intakes, jetty pockets and channels big plant cannot reach.

PT Berkat Bumi Putra runs two cutter suction dredgers drawing 1.0 m and 1.3 m. Domestic crews, domestic rates, and independent bathymetry before and after every job.

Request vessel availability See the fleet

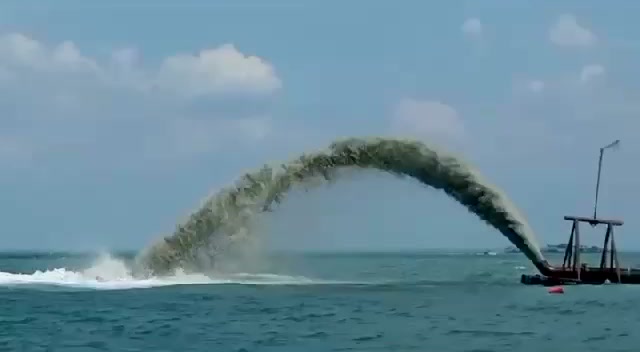

Catur Pilar Sejati 1 discharging dredged sand in an arc from its floating pipeline

1.0 – 1.3 mOperating draft

300 m³/hrSolids per vessel

15 mMaximum dredging depth

1,000 mDischarge by floating pipe

Fleet

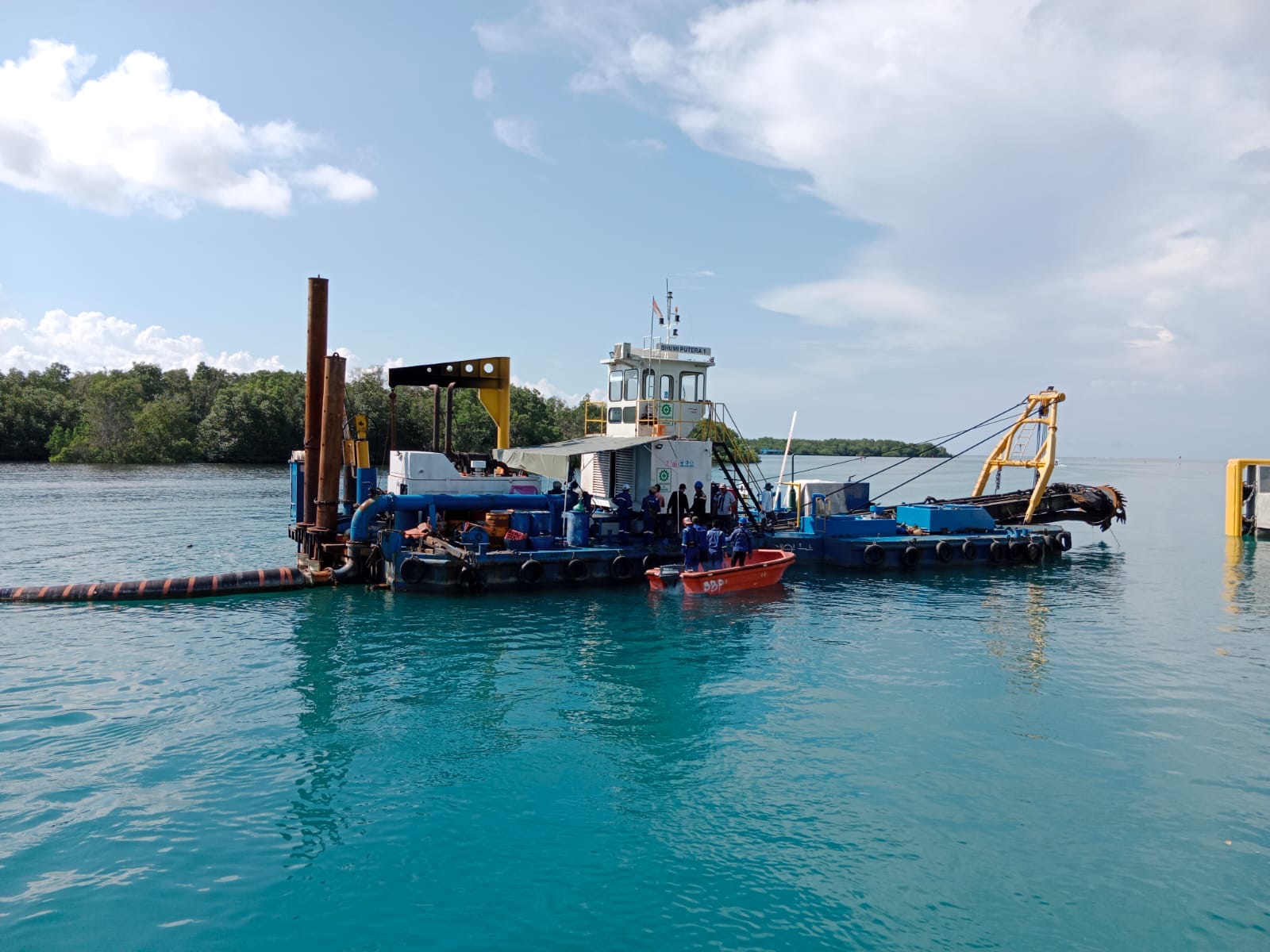

CSD Bhumi Putera 1

Built / flag	2021 · Indonesia
Length × width × depth	32 × 10 × 2 m
Draft	1.3 m
Dredging depth	14 m
Capacity, solids / mixture	300 / 2,000 m³/hr
Suction / discharge pipe	16 in
Main engine	Caterpillar C32, 950 HP
Cutter diameter	1,600 mm
Ladder length
Max discharge length	1,000 m

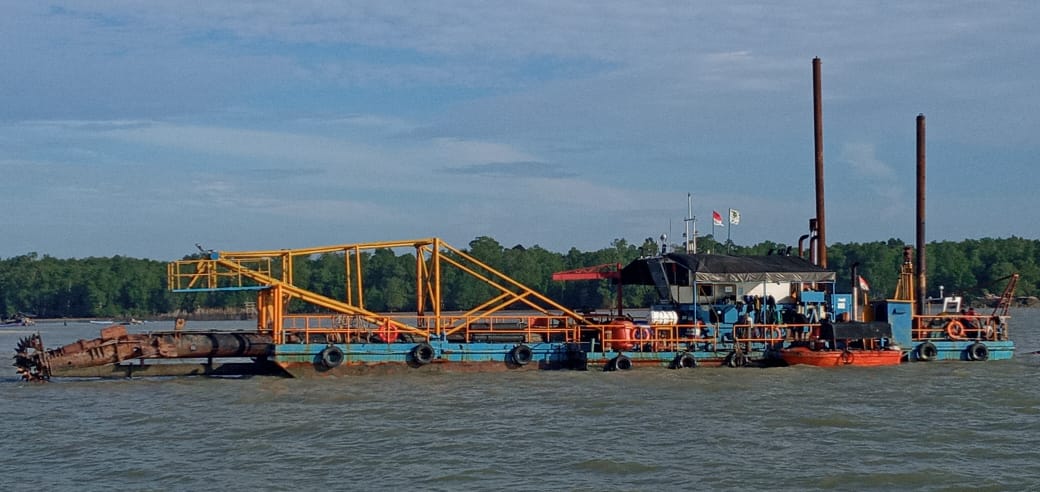

CSD Catur Pilar Sejati 1

Built / flag
Length × width	31 × 9.5 m
Draft	1.0 m
Dredging depth @ 60°	0 – 15 m
Capacity, product	300 m³/hr
Suction / discharge	400 mm / 16 in
Main engine	Cummins KTA38, 1,350 HP
Spuds	Carriage spud, 18 m
Control	PLC + hydraulic

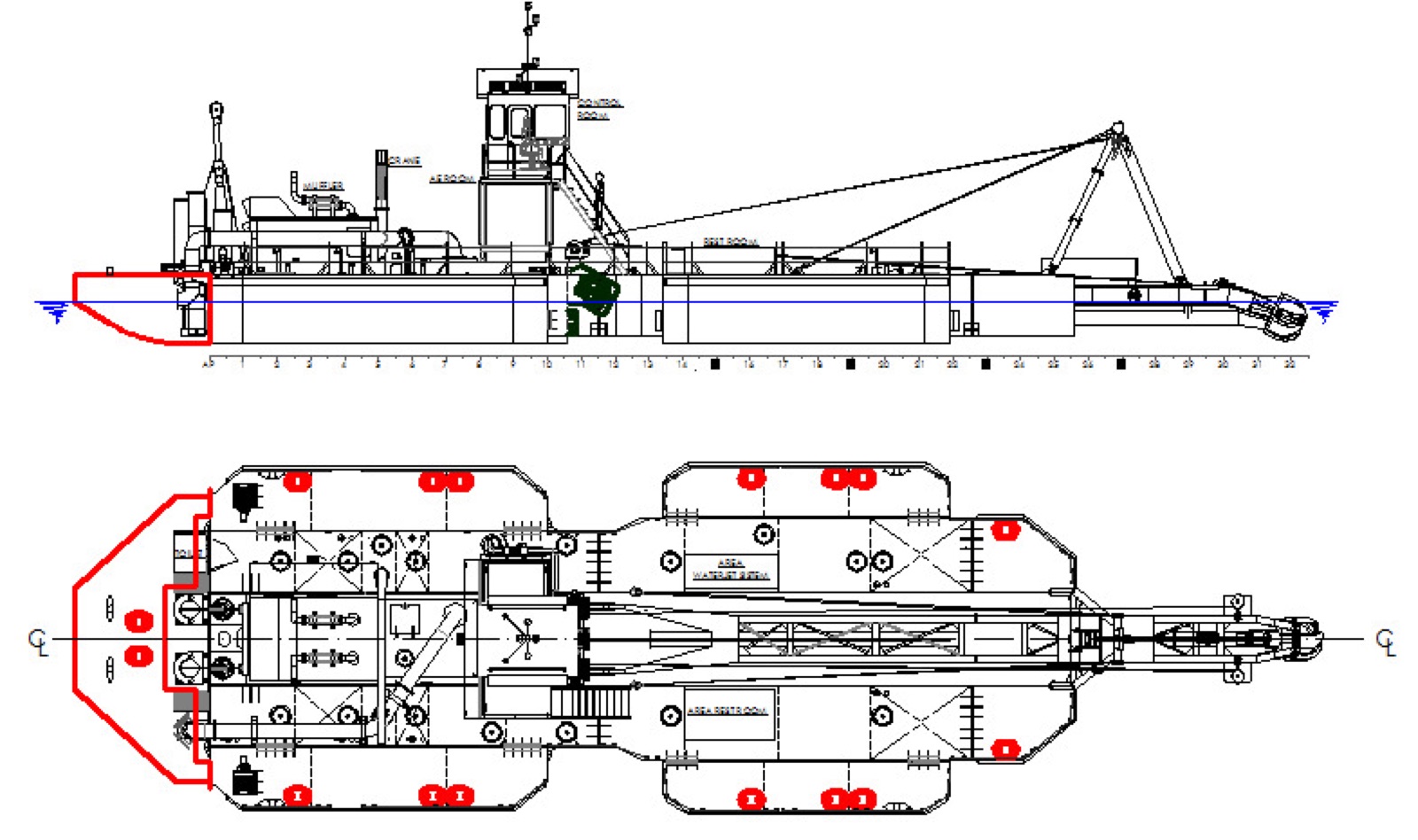

General arrangement drawing of a 16-inch cutter suction dredger, side elevation and deck plan — General arrangement, 16-inch cutter suction dredger. Side elevation and deck plan.

What the fleet is built for

Power-plant intakesIntake canals and cooling-water pools where a 1.0 m draft gets in and a hopper cannot.
Port basins and jettiesBerth pockets and basins to −12 m LWS, including coal and mud sediment.
Rivers and reservoirsWet channels and reservoirs where bank excavators cannot reach the bed.
Sand winning and reclamationProduction charters pumping sand to shore up to 1,000 m away.

Two ways to engage

Time charter of a vessel with crew, service boat and floating pipe, or a unit-rate works contract per cubic metre. Rates are quoted per job.

Measured, not estimated

Independent bathymetry before and after each job, and daily logs countersigned on site, so the volume paid for is the volume moved.

Track record

Third-party flow test · Nusa Lembongan, 21 June 2022

Pump rpm	Discharge	Mixture flow	Solids
550	4.8 bar	1,505 m³/hr	313 m³/hr (20.8%)
550	5.0 bar	1,427 m³/hr	535 m³/hr (37.5%)

Tested and signed by PT Banter Prima Sentosa.

Selected work

2026	Sand production charter, Can Gio, Vietnam
2025	River charter with 1,000 m floating pipe, Sungai Tayan, West Kalimantan
2024	Power-plant intake work method, Cilamaya, Karawang
2022	Commissioning and flow test, Nusa Lembongan, Bali

Legal and compliance

Legal entity	PT Berkat Bumi Putra, operating since 2019
Deed of establishment	Akta no. 08, 2 Dec 2021, Notaris Joko Dwi Ariyanto, SH., M.Kn.
SK Menkumham	AHU-0234469.AH.01.11 Tahun 2021, 30 Dec 2021
KBLI	42914 Pengerukan (dredging) · 43120 Penyiapan Lahan (site preparation)
Management	Komisaris Rosleny Sarudin · Direksi Petrus Himawan, Patricia Puspa Himawan
Flag	Indonesia, both vessels
